VIPRAM PLY / PRODUCT COLLECTION
FILM FACED
SHUTTERING
PLYWOOD
VIPRAM® Film Faced Shuttering Plywood is manufactured from selected wood and resin-coated for construction formwork applications. The supplied product information highlights quality testing after production, strength, water resistance and a smooth surface finish.
Product overview
Built for demanding
construction applications.
This plywood range is made from wood sourced through industry vendors and is described in the supplied material as being quality-tested after production. The stated focus is a durable, tough and environment-friendly panel for construction use.
Applications
Film-faced shuttering plywood is used in RCC construction and formwork. The supplied information also lists bridges, flyovers, metro projects, shipbuilding, water tanks, cooling towers and high-rise buildings among its applications.
RCC ConstructionBridges & FlyoversMetro ProjectsWater TanksCooling TowersHigh-rise BuildingsShipbuilding
Surface and use

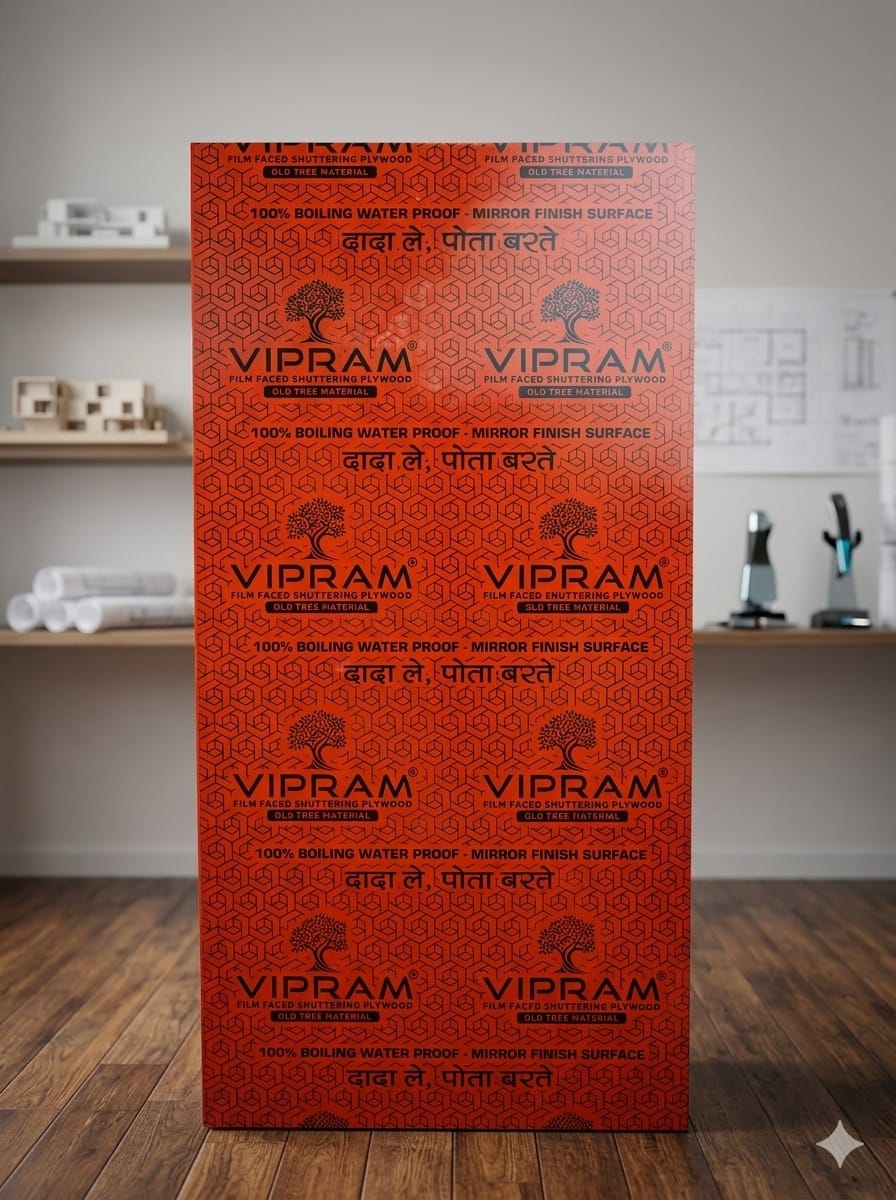

The supplied product artwork and details describe a film-faced surface intended to provide a smooth finish to concrete formwork. The provided feature list states high strength, water resistance and reuse of up to 20 repetitions, depending on handling and use conditions.
Available weight options supplied for this product are shown below.
Available options
Available weights.
Weight options provided for VIPRAM Film Faced Shuttering Plywood.
30 kgAvailable weight
34 kgAvailable weight
50 kgAvailable weight
Technical information
Technical specifications.
| Test | Required Value | Observed Value |
|---|---|---|
| Moisture Content | 5–15% | As per ISI Requirement |
| Glue Shear Strength (after 72 hrs. boiling) | Minimum individual: 800 N Minimum average: 1000 N | As per ISI Requirement |
| Adhesion to plies | Minimum pass standard | Excellent |
| Mycological Test — Glue Shear Strength | No sign of separation Minimum individual: 800 N Minimum average: 1000 N | No separation as per ISI requirement |
| Tensile Strength | Along grain: 32.5 N/sq.mm Across grain: 22.5 N/sq.mm Sum: 60.0 N/sq.mm | As per ISI Requirement |
| Static Bending Strength — Modulus of Elasticity | Along grain: 7500 N/sq.mm Across grain: 4000 N/sq.mm | As per ISI Requirement |
VIPRAM SHUTTERING / FILM FACE
KEY FEATURES
Features listed in the supplied product information.
Phenolic film for a smooth formwork finish
Reuse up to 20 repetitions
Resistance to warping, swelling and shrinking
IS 4990:2024 certification claim supplied
VIPRAM · FILM FACED SHUTTERING
Care and handling
Tips on maintenance.
Follow the supplied handling guidance to help protect the panel surface between uses.
Store packs on a level, flat and raised surface in a clean, dry, covered place with free air circulation.
Protect boards and stacks from rain and dampness.
Take extra care to avoid scratches.
Do not drag plywood boards over one another, as this can scratch the surface.
Avoid dragging board edges across faces; keep sand and small stone particles from getting between surfaces.
Coat cut edges with a suitable sealant, such as chlorinated rubber paint, as stated in the supplied maintenance guidance.
After each use, dry panels on suitable spacers with free circulation of air.
Product highlights
WHY VIPRAM PLY
Film-faced shuttering plywood information, applications and care guidance in one place.
For RCC construction and concrete formwork applications
Supplied information describes a smooth phenolic-film surface
Water resistance highlighted in the supplied product details
Available weights: 30 kg, 34 kg and 50 kg
Maintenance guidance provided for storage and reuse
Discuss your shuttering plywood requirements
Contact the Vipram Ply team for product enquiries and availability.
